Flange - Assembly

Custom Tee Flange

Share this:


LF Flange Assembly - Tee

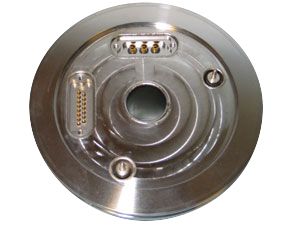

Custom flange tee assembly consisting of a 3 Pin coaxial-D feedthrough, 15 pin subminiature-D feedthrough, MHV grounded shield feedthrough, and a BNC grounded shield feedthrough. Also welded into the center is a NW40 KF half nipple.

Part Number:
Custom Flange

Specifications

Materials:
SS, Glass-Ceramic
RoHS Compliant:
Yes
Max. Bake Temperature:
250ºC
Max. Operating Temperature:
250ºC
Max. Vacuum Level:
1x10E-10 Torr
Current rating:
5 AMP per Pin
Number Contacts:
20 of various types
Gender:
Male / Male
Min. Operating Temperature:
-200ºC
Contact Material:
Ni-Fe alloy, Au-plt
