1/4" Swagelok Cryogenic Feedthrough Fittings

Swagelok Fitting Feedthroughs - Compression

Single & Dual Cryogenic Swagelok Feedthroughs

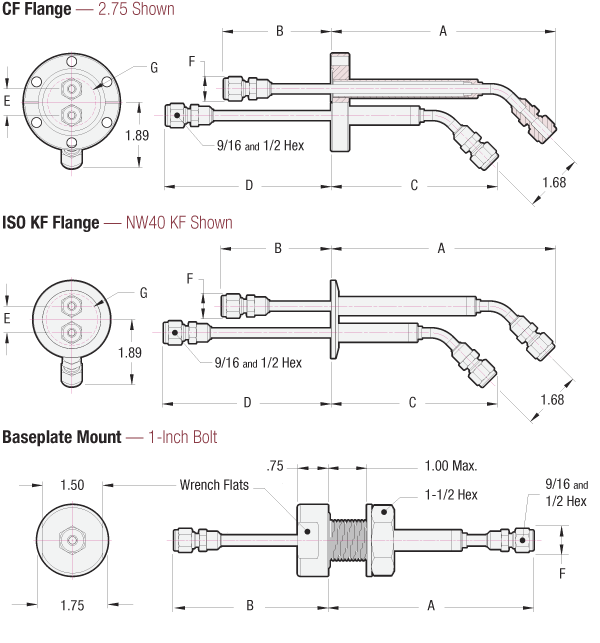

Diagram of two dual cryogenic Swagelok feedthroughs, one mounted on a CF flange and one mounted on an ISO flange and a baseplate mount

Cryogenic service fluid feedthroughs are used to deliver gas and/or coolants, such as Liquid Nitrogen LN2, into high (HV) and ultrahigh (UHV) vacuum systems. Feedthroughs are available with single or dual 1/4 inch tube supply lines. Supply lines are thermally insulated by a 1/2 inch coaxial support tube, which creates a vacuum gap around each supply line. Feedthroughs are terminated with Swagelok standard compression (swaging) fittings.

As their name implies, Swagelok cryogenic fittings produce a demountable, gas-tight, cold-formed (swaged) mechanical joint between a tube's OD and the ferrules housed inside each fitting. Tube finish, temper and wall thickness are all critical parameters for making reliable, gas and vacuum-tight seals. Please consult Swagelok specifications and installation guidelines for best results.

Can't find what you need? Contact Accu-Glass Products to discuss other configuration options or solutions customized to your specific requirements.
