HV PCB Connector - 9 Pin - Male

HV PCB Connector - 9 Pin - Male

Share this:


HV PCB Connector - 9 Pin - Male

4 Review(s)

9 Pin (Male) High Vacuum Printed Circuit Board (PCB) mount Subminiature-D connector.

Part Number:
111100
Stock Level:
in stock
Weight (lbs):
0.1

$108.00

Specifications

Model Number:
9D-HVPCBP
Materials:
DAP, SS
RoHS Compliant:
No
Max. Bake Temperature:
120ºC
Max. Operating Temperature:
120ºC
Max. Vacuum Level:
1x10E-8 Torr
Number Contacts:
9
Gender:
Male

Detailed images

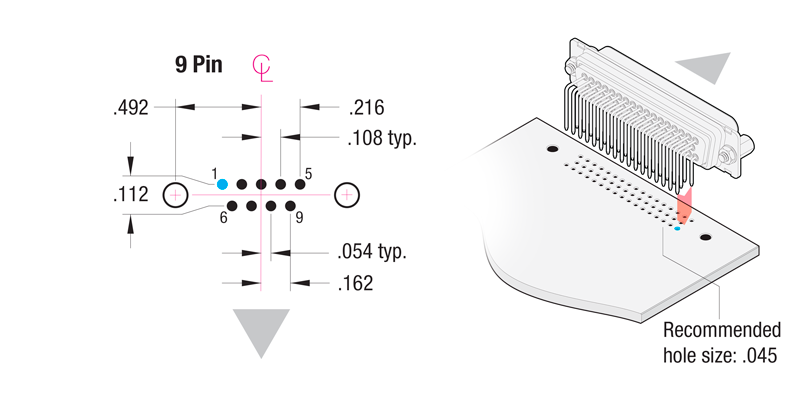

90° Printed Circuit Board 9-Pin Contact Hole Pattern
