0.125 Rotary & Linear Feedthrough Accessories

Sleeve Coupling- 0.125" ID

Sleeve Coupling- 0.125" ID

Part Number: 112534

Sleeve coupling for 0.125" OD precision ground shaft stock.

$94.00
Set Screw Collar- 0.125" ID

Set Screw Collar- 0.125" ID

Part Number: 112535

Set screw collar for 0.125" OD precision ground shaft stock.

$68.00
Universal Joint- 0.125" ID

Universal Joint- 0.125" ID

Part Number: 112536

Universal joint for 0.125" OD precision ground shaft stock.

$446.00

Linear / Rotary Accessories

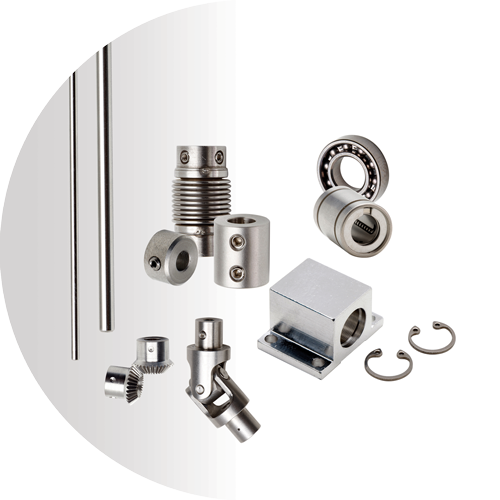

Accu-Glass Products’ motion feed­through accessories are an assortment of in-vacuum hardware components to assist the user when installing motion feedthroughs. Various types of drive shaft components are provided, including bellows couplings, universal joints, extension couplings, bearings, bearing mounts, ground shaft stock and collars.
Vented screws for the installation of bearing mounts are also available. If you require custom designed hardware, please contact our technical sales staff with your inquiries.

1/8-Inch Shaft Deflection Curves

Features

  • Linear and rotary Accessories
  • 1/8 and 1/4-Inch shaft sizes
  • Motors, Rotary and Linear AC, DC
  • Pneumatic actuator, 90° Rotary
  • Shaft deflection data
  • UHV and HV compatible construction
  • Custom solutions on request

Specifications

Material
Shafts, Stainless Steel304
Mounts, Aluminum6061
Vacuum Range
UHV, Ultrahigh vacuum1x10E-10 Torr
HV, High vacuum1x10E-8 Torr
Temperature Range 1
Up to250°C
Motors, Air-Service65°C
Notes
  1. Overall assembly ratings must be adjusted to that of its lowest rated component. For cryogenic service, the lowest recommended temperature is -80°C
