Wobble Stick Feedthroughs

Wobble Stick, Linear-Angular Travel

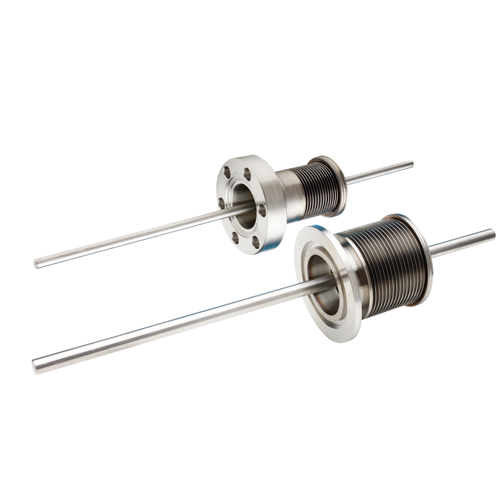

Wobble stick feedthroughs offer an economical method of providing both angular and linear movement. Position of the wobble stick must be manually held by the operator or customer provided position lock. Under vacuum load the bellows are compressed and the shaft is completely extended into the vacuum chamber, unless restrained. The two models offered are capable of 44° (0.5-inch linear) and 60° (1-inch linear) of angular motion, respectively. However, when mounted on a typical necked port, the angular motion can be reduced to 20° and 30° respectively. Feedthroughs are available on Conflat® style CF metal seal or ISO-KF style elastomer seal flanges.

Features

  • 1/2 Inch / 44° linear-angular travel
  • 1 inch / 60° linear-angular travel
  • UHV compatible construction
  • Leak tight to 2 x 10-10 Std cc/sec Helium
  • Conflat® and ISO compatible mounts
  • Manual actuation
  • Edge-welded bellows seal
  • Custom solutions on request

Specifications

Material
Body, Stainless Steel304
Bellows, Edge-WeldedAM-350
Vacuum Range
UHV, Ultrahigh vacuum1x10E-10 Torr
HV, High vacuum1x10E-8 Torr
Temperature Range 1
Feedthrough250°C
Flange, Conflat®450°C
Flange, ISO150°C
Load
Axial, Maximum5 lb
Lateral, Maximum 25 lb
Resolution
Linear/Angular ScalesNone
Notes
  1. Overall assembly ratings must be adjusted to that of its lowest rated component. For cryogenic service, the lowest recommended temperature is -80°C
  2. With load positioned 2-Inches from flange sealing face
