Mil-C-5015 Circular Feedthroughs and Accessories

Two Mil-C-5015 CF feedthroughs Show CF Feedthroughs for Two Mil-C-5015 CF feedthroughs
CF Feedthroughs
Two Mil-C-5015 ISO feedthroughs Show ISO KF / LF Feedthroughs for Two Mil-C-5015 ISO feedthroughs
ISO KF / LF Feedthroughs
2 female connector to cables and 2 male connector to connectors Show UHV Cables for 2 female connector to cables and 2 male connector to connectors
UHV Cables
2 female connectors, 1 male connector, 2 female and 2 male T-5p power contacts Show UHV Components for 2 female connectors, 1 male connector, 2 female and 2 male T-5p power contacts
UHV Components
2 3C and 6C female air connector to cables Show Air Cables / Components for 2 3C and 6C female air connector to cables
Air Cables / Components

Mil-C-5015 Feedthroughs

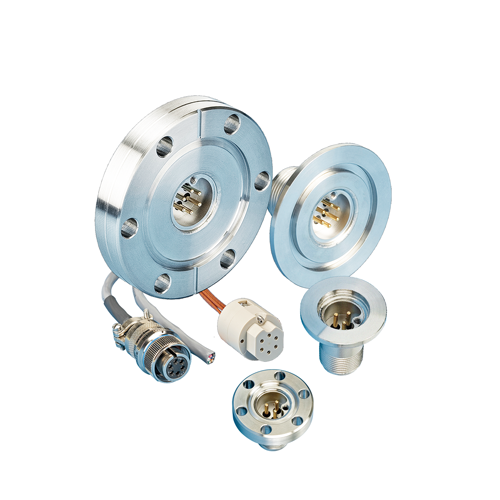

Accu-Glass Products' circular hermetic power feedthroughs are designed to meet Mil-C-5015 specifications.  These circular feedthroughs are available in either a 3-pin or 6-pin configuration.  Gold plated pins are in a straight through pin-to-pin design, are hermetically sealed, and electrically insulated in a stainless steel shell using the latest in glass-ceramic bonding technology.

Ultrahigh vacuum cable assemblies with PEEK (polyetheretherketone) connectors and Kapton® insulated 18 AWG cables are available to meet the demands of UHV environments.  They are fitted with a captured stainless steel vented screw that provides a means of securely locking them to their mating feedthrough.  Air service cable assemblies use standard Mil-C-5015 connectors.  Custom vacuum and air-service cable assemblies are available on request.

Glow Discharge Graph

Features

  • Mil-DTL-5015 3 and  6-Pin Interface
  • High temperature rated to 250°C
  • Conflat® and ISO NW compatible mounts
  • Kapton® insulated vacuum cables
  • PEEK connector with locking screws
  • Air-service cables / Connectors
  • UHV compatible construction
  • Feedthrough/Cable Kits Available
  • Custom solutions on request

Specifications

Electrical
Voltage 1, Maximum700 VDC
Current 2, Maximum10 A
Material
Shell, Stainless Steel304
Pins, Au-PlatedNi-Fe
Seal / InsulatorGlass-Ceramic
Connector, Air Ni-PlatedAluminum
Connector, UHV 3PEEK
Vacuum Range
UHV, Ultrahigh vacuum1x10E-10 Torr
HV, High vacuum1x10E-8 Torr
Temperature Range 4
Feedthrough-200 to 250°C
Flange, Conflat®-200 to 450°C
Flange, ISO-26 to 150°C
Connector / Cable, Air80°C
Connector / Cable, UHV PEEK250°C
Thermal Gradient, Maximum25°C/minute
Notes
  1. Electrical ratings are maximum test values, with vacuum side at ≤ 1x10-4 Torr.
  2. For proper heat dissipation, a maximum of 20% of the pins on a feedthrough may carry the maximum pin current at any given time.
  3. PEEK is a polyether ether ketone thermoplastic.
  4. Overall assembly ratings must be adjusted to that of its lowest rated component. For cryogenic service, the lowest recommended temperature is -200°C
  5. Unless designated a 'kit,' connectors and cable assemblies are not included with feedthrough and must be purchased separately.
