1.00 Baseplate, 40 KF ISO Flange Adapter

1.00 Baseplate, NW40 KF ISO Flange Adapter

1.00 Baseplate, NW40 KF ISO Flange Adapter

1 Review(s)

1.00 Baseplate (1-12 UNF Thread) to NW40 KF ISO Flange Adapter... Includes 1 each Viton gasket, Washer, and Nut. Fits up to 1.00 maximum bulkhead / plate thickness.

Part Number:
211120
Stock Level:
in stock
Weight (lbs):
1

$238.00

Specifications

Model Number:
BPF-K40
Materials:
Stainless Steel, Viton O-Ring
RoHS Compliant:
Yes
Max. Bake Temperature:
450 C, without O-Rings
Max. Operating Temperature:
150 C
Max. Vacuum Level:
HV
Flange OD:
2.16
Length / Height:
2.93
ID:
0.75
Other Information:

Includes Baseplate Mounting Hardware

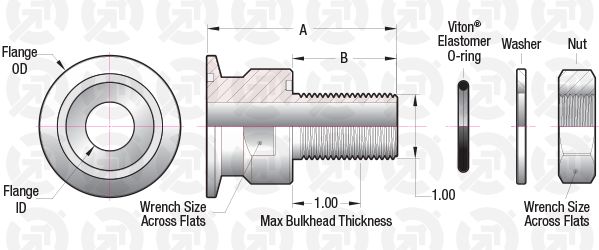

Detailed images

1.00 Baseplate, NW40 KF ISO Flange Adapter
