10kV, 30AMP Feedthrough on a NW16 KF Flange

10kV, 30AMP Feedthrough on a NW16 KF Flange

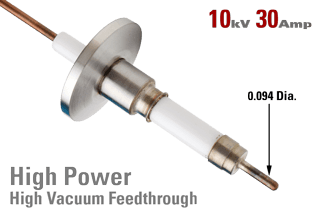

High Power 10kVDC 30 AMP Copper conductor feedthrough, mounted on a NW16 KF flange.

Part Number:
112477
Weight: 0.25 lbs
$156.00
  • Specifications
  • Downloads
  • Detailed Images
Model Number:HP-10-K16
Materials:SS, Ceramic, Copper
RoHS Compliant:Yes
Max. Bake Temperature:150ºC
Max. Operating Temperature:150ºC
Max. Vacuum Level:1x10E-8 Torr
Current rating:30AMP
Number Contacts:1
Contact Material:Copper
