12 AWG - Stranded Core Wire, High Voltage

12 AWG - Stranded Core Wire - High Voltage

12 AWG - Stranded Core Wire - High Voltage

6 Review(s)

12 AWG, Silicone Insulated Wire. 15' ft. long. High Voltage Wire.    To receive cable in one continuous length, order multiple quantities and select 'YES' on the "One Length" option below.

Part Number:
111660
Stock Level:
in stock
Weight (lbs):
1

$246.00
x 15' ft.

Specifications

Model Number:
SIL-TYP26-15'
Materials:
Silicone, Silver Plated Copper
Max. Bake Temperature:
150ºC
Max. Operating Temperature:
90ºC
Max. Vacuum Level:
1x10E-8 Torr
Wire Gauge:
12 AWG
Voltage rating:
10kVAC, 30kVDC
Current rating:
20 AMP
Minimum Bend Radius, Long-Term:
0.75"

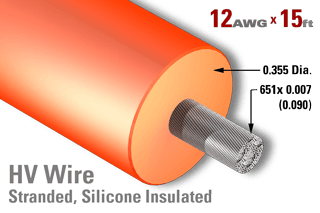

Detailed images

12 AWG - Stranded Core Wire - High Voltage
