15-Pin HV Bulkhead-D Feedthrough

15-Pin HV Bulkhead-D Feedthrough Flange

15-Pin HV Bulkhead-D Feedthrough Flange

4 Review(s)

15 pin Sub-D feedthrough on a Bulkhead Flange

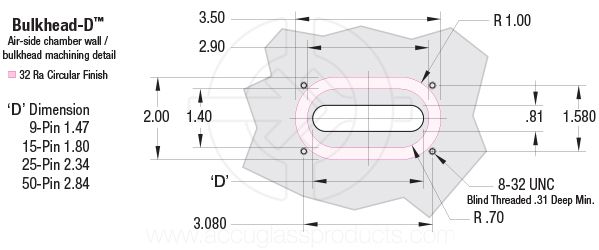

15-Pin Subminiature-D on a 2x3.5 Inch HV Bulkhead-D Flange... High vacuum seal is made using the included Viton compound elastomer gasket (113096), and four (4) 8-32UNC x 5/8" long screws and washers (113097). Installation requires customer machining/polishing of chamber wall or bulkhead. See bulkhead machining drawing below for required dimensions.

Part Number:
113091
Stock Level:
in stock
Weight (lbs):
0.75

$449.00

Specifications

Model Number:
15D-RECT
Materials:
SS, Glass-Ceramic
RoHS Compliant:
Yes
Max. Bake Temperature:
200ºC
Max. Operating Temperature:
150ºC, limited by O-ring type used.
Max. Vacuum Level:
1x10E-8 Torr
Current rating:
5 AMP
Number Contacts:
15
Flange OD:
2 x 3.5 Inch
Gender:
Male / Male
Length / Height:
2 x 3.5 Inch
Width:
.59 Inch
Contact Material:
Ni-Fe alloy, Au-plt
Other Information:

Includes Gasket and Fasteners
