Blank, 4.5 Access Door

0 Review(s)

Blank, vacuum access door with a 4.50 CF flange mount and a 2.56 center bore. Flange has eight (8) clearance holes (for 5/16 diameter bolts) counter-bored into CF flange/door interface . Door assembly is fitted with a robust and adjustable dual-axis hinge, and a fast-acting, over-center latching mechanism that can be secured with included R-clip cotter pin. A Viton elastomer O-ring gasket seal is also provided. Access doors ship with a standard 195° swing-angle, however an optional 120° swing-angle Door-Stop kit is available for retrofitting hinge mechanism (purchased separately).

Part Number:
112921
Stock Level:
in stock
Weight (lbs):
6

$745.00

Specifications

Materials:
304 Stainless Steel
RoHS Compliant:
Yes
Max. Bake Temperature:
150ºC
Max. Operating Temperature:
150ºC
Max. Vacuum Level:
1x10E-8 Torr
Flange OD:
A= 4.50
Length / Height:
C= 3.30 / D= 2.63 / F= 2x 0.68
Width:
C+D= 5.93
Depth / Thickness:
E= 2.11
Min. Operating Temperature:
-20ºC
ID:
B= 2.56
Other Information:

Adjustable, Dual-axis hinge

Detailed images

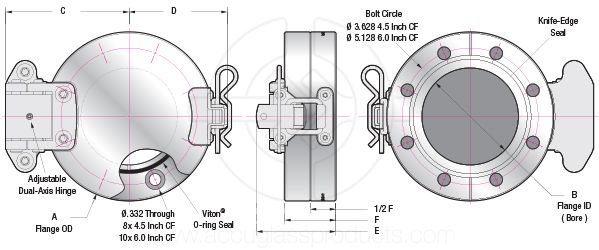

4.5 Blank Access Door Drawing
