Connector to Cable - 1 Coax, 4 Instrumentation - Male, PEEK

Connector to Cable - 1 Coax, 4 Instrumentation - Male, PEEK

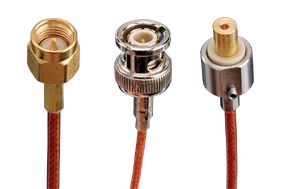

1 Kapton Coaxial Cable + 4 Single Way Kapton Cables with Pins (Male) & a Peek D-Type Connector on one end and "Connector #2" option on the other.

Options of 19" or 39" inches are available here.   Custom lengths are also available, please call.
Part Number:
110964
Weight: 0.1 lbs
$255.00
  • Specifications
  • Downloads
  • Detailed Images
Model Number:9KAP-1CX4i-19PC or 9KAP-1CX4i-39PC
Materials:Kapton®, PEEK
RoHS Compliant:Yes
Max. Bake Temperature:250ºC
Max. Operating Temperature:250ºC
Max. Vacuum Level:1x10E-10 Torr
Number Contacts:1 - Coax, 4 - Instrumentation
Gender:Male
Contact Material:Ni-Fe alloy, Au-plt
