Coaxial SHV-5 Feedthroughs and Components

4x single-ended grounded shield SHV-5 CF feedthrough Show Grounded, CF Feedthroughs for 4x single-ended grounded shield SHV-5 CF feedthrough
Grounded, CF Feedthroughs
Single-ended floating shield SHV-5 CF feedthrough Show Floating, CF Feedthroughs for Single-ended floating shield SHV-5 CF feedthrough
Floating, CF Feedthroughs
Single-ended grounded-shield ISO feedthrough Show Grounded, ISO KF Feedthroughs for Single-ended grounded-shield ISO feedthrough
Grounded, ISO KF Feedthroughs
Single-ended floating-shield ISO feedthrough Show Floating, ISO KF Feedthroughs for Single-ended floating-shield ISO feedthrough
Floating, ISO KF Feedthroughs
Accu-Fast 500S and 875S SHV-5 connector to cables Show UHV Cables for Accu-Fast 500S and 875S SHV-5 connector to cables
UHV Cables
Accu-Fast 500 and 875 SHV-5 connectors Show UHV Components for Accu-Fast 500 and 875 SHV-5 connectors
UHV Components
Close up of male SHV-5 connector to connector and a SHV-5 air side connector Show Air Cables / Components for Close up of male SHV-5 connector to connector and a SHV-5 air side connector
Air Cables / Components

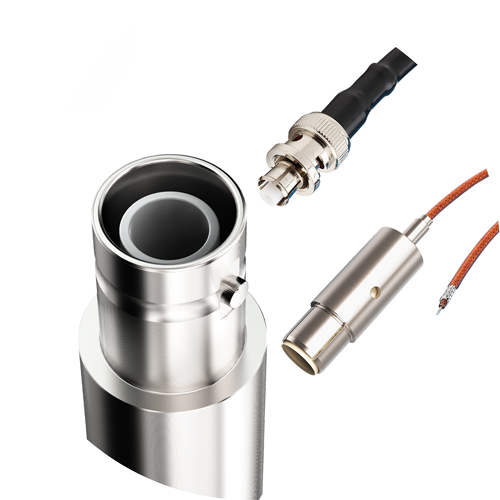

SHV-5 Coaxial Interface

The 'Safe High Voltage' connector interface is designed for low noise 50-ohm lines requiring higher voltage than is possible with a standard BNC interface. SHV-5 coaxial feedthroughs are constructed in both grounded and floating shield configurations. Floating shield types provide two concentric conductor paths: an outer metal conductor tube (shield) concentric with, and enclosing, a cylindrical center conductor pin. Both paths are electrically isolated from each other and a mounting flange. Grounded shield SHVs provide only one path that's electrically isolated from the flange; where grounded shield and flange are electrically common. Vacuum side of single-ended grounded and floating MHV feedthroughs have a 0.094 inch (2.4-mm) diameter conductor pin that mates with grounded or floating AccuFast™ connectors.

The SHV-5 coaxial feedthrough is especially useful in applications where low voltage BNC feedthroughs must coexist alongside high voltage coaxial lines. The SHV-5's unique connection interface will not allow accidental cross mating with BNCs, MHVs, or vice versa.

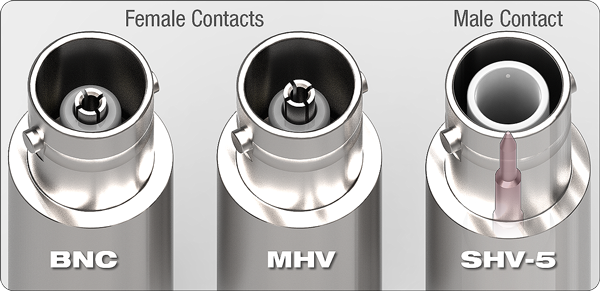

BNC, MHV, and SHV InterfacesGlow Discharge Graph

Features

  • SHV-5 Coaxial Interface
  • Grounded and Floating Shield
  • Single Ended configurations
  • Kapton® insulated cables
  • High temperature rated to 250°C
  • UHV compatible construction
  • Conflat® and ISO KF compatible mounts
  • Air service cables / connectors
  • Custom solutions on request


Specifications

Electrical
Voltage 1, Maximum
   Grounded Shield5,000 VDC
   Floating Shield2,500 VDC
   Current, Max @ 20°C5 A
Material
Shell304 Ss
Pin / ConductorNi, Nickel
Insulation, CeramicAlumina
Connector, Vacuum 2
   AccuFast™PEEK / Ss
Connector, AirComposite
Cable Insulation, Type F FilmKapton®
Vacuum Range
UHV, Ultrahigh vacuum1x10E-10 Torr
HV, High vacuum1x10E-8 Torr
Temperature Range
Feedthrough-200 to 250°C
Flange, Conflat®450°C
Flange, ISO150°C
Connector / Cable, Air165°C
Connector / Cable, UHV PEEK250°C
Thermal Gradient, Maximum25°C/minute
Notes
  1. Electrical ratings are maximum test values, with feedthrough's vacuum side at ≤ 1x10E-4 Torr. Feedthroughs are intended for instrumentation applications carrying low level signal voltage and current.
  2. PEEK is a polyether ether ketone thermoplastic.
  3. Overall assembly ratings must be adjusted to that of its lowest rated component. For cryogenic service, the lowest recommended temperature is -200°C
  4. Connectors and cables are not included with feedthrough and must be purchased separately.
