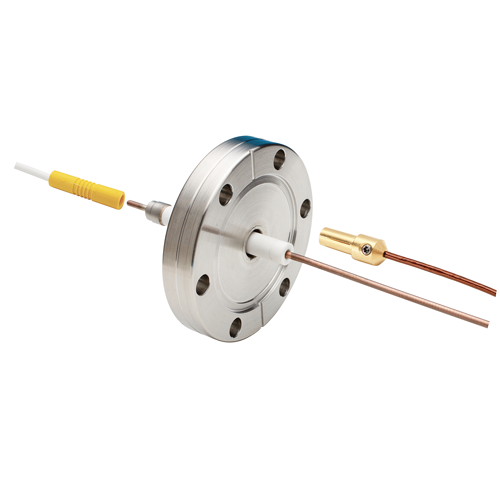

5kV, 30AMP Feedthrough on a 1.33" CF Flange
High Power 5kVDC 30 AMP Copper conductor feedthrough, mounted on a 1.33" CF flange.
High Power 5kVDC 30 AMP Copper conductor feedthrough, mounted on a 1.33" CF flange.
High Power 10kVDC 30 AMP Copper conductor feedthrough, mounted on a 1.33" CF flange.
High Power 20kVDC 30 AMP Copper conductor feedthrough, mounted on a 1.33" CF flange.
High Power 5kVDC 30 AMP Copper conductor feedthrough, mounted on a 2.75" CF flange.
High Power 10kVDC 30 AMP Copper conductor feedthrough, mounted on a 2.75" CF flange.
High Power 20kVDC 30 AMP Copper conductor feedthrough, mounted on a 2.75" CF flange.
High Power 'Fluted Ceramic' 20kVDC 150 AMP Copper conductor feedthrough, mounted on a 2.75" CF flange.
These high voltage CF feedthroughs are mounted on CF Flanges that incorporate the industry standard "captured copper gasket" sealing principle, making it easy to mount to your existing CF Flange ports.
