Connector to Cable - 2 TC Pairs and 2 Power - Male, Type-K

Share this:


Connector to Cable - 2 TC Pairs and 2 Power - Male, Type-K

0 Review(s)

2 Thermocouple Pair (Type-K) and 2 Power (12 AWG) Kapton Insulated Cables with Chromel and Alumel Pins (Male), 2 Power Pins, and a PEEK Sub-D Type Connector on one end.

Options of 19" or 39" inches are available here.   Custom lengths are also available, please call.

Part Number:
110932
Stock Level:
in stock
Weight (lbs):
0.10

$279.00

Specifications

Materials:
PEEK, Kapton, Chromel, Alumel
RoHS Compliant:
Yes
Max. Bake Temperature:
250ºC
Max. Operating Temperature:
250ºC
Max. Vacuum Level:
1x10E-10 Torr
Current rating:
TC Pins - Milliamps, Power - 20 AMP
Number Contacts:
6, 2-TC pairs and 2-Power
Gender:
Male
Contact Material:
Chromel, Alumel, Cu alloy-Au-plt
Other Information:

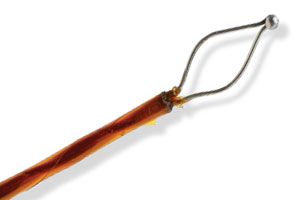

Thermocouple feedthroughs do not measure temperature, but merely provide a conduit to bring the EMF signal generated at a thermocouple junction through a vacuum vessel wall to an external voltage measuring or temperature readout instrument. Type-K thermocouples with positive Chromel wires and negative Alumel wires are recommended for use in clean oxidizing atmospheres. The maximum operating temperature for these alloys is 1260 C for larger wire sizes. The useful temperature measuring range for a Type-K thermocouple is between (-)200 C to (+)1250 C.
