Connector to Cable - 4 Thermocouple Pairs - Male

Connector to Cable - 4 Thermocouple Pairs - Male, PEEK

Connector to Cable - 4 Thermocouple Pairs - Male, PEEK

2 Review(s)

4 Thermocouple Pair (Type-K) Kapton Insulated Cable with Chromel and Alumel Pins (Male) and PEEK Sub-D Type Connector on one end.

Options of 19" or 39" inches are available here.   Custom lengths are also available, please call.

Part Number:
110930
Stock Level:
in stock
Weight (lbs):
0.10

$332.00

Specifications

Model Number:
9KAP-8TC-19PC or 9KAP-8TC-39PC
Materials:
PEEK, Kapton, Chromel, Alumel
RoHS Compliant:
Yes
Max. Bake Temperature:
250ºC
Max. Operating Temperature:
250ºC
Max. Vacuum Level:
1x10E-10 Torr
Current rating:
TC Pins - Milliamps
Number Contacts:
8, 4-TC pairs
Gender:
Male
Contact Material:
Chromel, Alumel
Other Information:

Thermocouple feedthroughs do not measure temperature, but merely provide a conduit to bring the EMF signal generated at a thermocouple junction through a vacuum vessel wall to an external voltage measuring or temperature readout instrument. Type-K thermocouples with positive Chromel wires and negative Alumel wires are recommended for use in clean oxidizing atmospheres. The maximum operating temperature for these alloys is 1260 C for larger wire sizes. The useful temperature measuring range for a Type-K thermocouple is between (-)200 C to (+)1250 C.

Detailed images

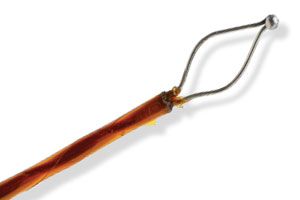

Connector to Cable - 4 Thermocouple Pairs - Male, Hot Junction
