Viewport, 4.5 Access Door

Viewport, 4.5 Access Door

7 Review(s)

Viewport, vacuum access door with a 4.50 CF flange mount, and a 2.56 center bore is fitted with a standard 7056 Borosilicate glass window. Flange has eight (8) clearance holes (for 5/16 diameter bolts) counter-bored into CF flange/door interface . Door assembly is fitted with a robust and adjustable dual-axis hinge, and a fast-acting, over-center latching mechanism that can be secured with included R-clip cotter pin. A Viton elastomer O-ring gasket is also provided. Access doors ship with a standard 195° swing-angle, however an optional 120° swing-angle Door-Stop kit is available for retrofitting hinge mechanism (purchased separately).

Part Number:
112945
Stock Level:
in stock
Weight (lbs):
6

$946.00

Specifications

Model Number:
AD-VP-450C
Materials:
304 Stainless Steel / 7056 Borosilicate Glass
RoHS Compliant:
Yes
Max. Bake Temperature:
150ºC
Max. Operating Temperature:
150ºC
Max. Vacuum Level:
1x10E-8 Torr
Flange OD:

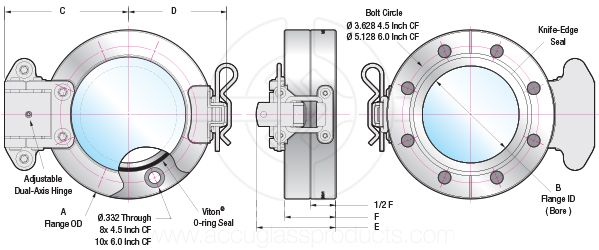

A = 4.47
Length / Height:
C = 3.30 / D = 2.63 / F = 2x 0.68
Width:
C+D = 5.93
Depth / Thickness:
E = 2.11
Min. Operating Temperature:
-20ºC
ID:
B = 2.56
Non-Stocked Lead Time:
4~6 Weeks ARO
Other Information:

Adjustable, Dual-axis hinge
