1.00 Baseplate Plug

1.00 Baseplate Plug, Stainless Steel

1.00 Baseplate Plug, Stainless Steel

1 Review(s)

1.00 Baseplate Plug, Blank, Stainless Steel... Includes 1 each Viton gasket, Washer, Screw and Wing-Nut. Fits up to 1.00 maximum bulkhead / plate thickness.

Part Number:
211125
Stock Level:
in stock
Weight (lbs):
0.25

$77.00

Specifications

Model Number:
BPP
Materials:
Stainless Steel, Viton O-Ring
RoHS Compliant:
Yes
Max. Bake Temperature:
450 C, without O-Ring
Max. Operating Temperature:
150 C
Max. Vacuum Level:
HV
Length / Height:
2.16
ID:
Blank, Shoulder fits 1.00 Bore
OD:
1.75
Other Information:

Includes Baseplate Plug Mounting Hardware

Detailed images

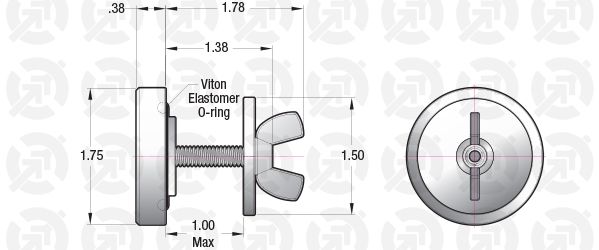

1.00 Baseplate Plug, Stainless Steel
