HomeSubminiature-DBulkhead-D Feedthroughs25-Pin HV Bulkhead-D Feedthrough
25-Pin HV Bulkhead-D Feedthrough Flange

25-Pin HV Bulkhead-D Feedthrough Flange

25 pin Sub-D feedthrough on a Bulkhead Flange

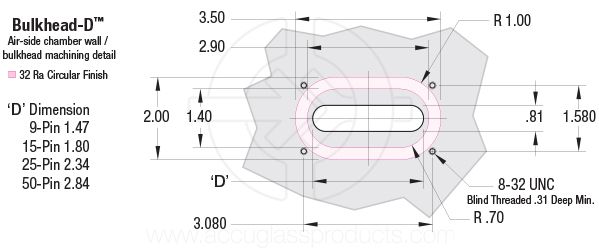

25-Pin Subminiature-D on a 2x3.5 Inch HV Bulkhead-D Flange... High vacuum seal is made using the included Viton compound elastomer gasket (113096), and four (4) 8-32UNC x 5/8" long screws and washers (113097). Installation requires customer machining/polishing of chamber wall or bulkhead. See bulkhead machining drawing below for required dimensions.

Part Number:
113092
Weight: 0.75 lbs
$520.00
  • Specifications
  • Downloads
  • Detailed Images
Model Number:25D-RECT
Materials:SS, Glass-Ceramic
RoHS Compliant:Yes
Max. Bake Temperature:200ºC
Max. Operating Temperature:150ºC, limited by O-ring type used.
Max. Vacuum Level:1x10E-8 Torr
Current rating:5 AMP
Length / Height:2 x 3.5 Inch
Width:.59 Inch
Number Contacts:25
Gender:Male / Male
Contact Material:Ni-Fe alloy, Au-plt
Other Information:

Includes Gasket and Fasteners
