9-Pin HV Bulkhead-D Feedthrough

0 Review(s)

9 pin Sub-D feedthrough on a Bulkhead Flange

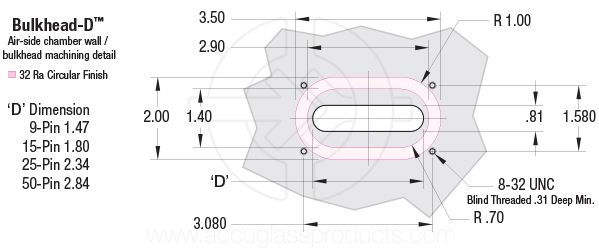

9-Pin Subminiature-D on a 2x3.5 Inch HV Bulkhead-D Flange... High vacuum seal is made using the included Viton compound elastomer gasket (113096), and four (4) 8-32UNC x 5/8" long screws and washers (113097). Installation requires customer machining/polishing of chamber wall or bulkhead. See bulkhead machining drawing below for required dimensions.

Part Number:
113090
Stock Level:
in stock
Weight (lbs):
0.75

$350.00

Specifications

Materials:
SS, Glass-Ceramic
RoHS Compliant:
Yes
Max. Bake Temperature:
200ºC
Max. Operating Temperature:
150ºC, limited by O-ring type used.
Max. Vacuum Level:
1x10E-8 Torr
Current rating:
5 AMP
Number Contacts:
9
Flange OD:
2 x 3.5 Inch
Gender:
Male / Male
Length / Height:
2 x 3.5 Inch
Width:
.59 Inch
Contact Material:
Ni-Fe alloy, Au-plt
Other Information:

Includes Gasket and Fasteners
