9 Way, Kapton Insulated Ribbon Cable

9-Way Kapton Insulated Ribbon Cable

9 Way, Kapton Insulated - Ribbon Cable

3 Review(s)

9 Way Kapton Ribbon Cable.
19", 39", and 96" lengths.  Custom lengths are also available, please call.

Part Number:
100740
Stock Level:
in stock
Weight (lbs):
0.10

$58.00

Specifications

Model Number:
KAP-R9-19" or KAP-R9-39" or KAP-R9-96"
Materials:
Kapton, Ag-plt Cu
RoHS Compliant:
Yes
Max. Bake Temperature:
250ºC
Max. Operating Temperature:
250ºC
Max. Vacuum Level:
1x10E-10 Torr
Wire Gauge:
28 AWG
Voltage rating:
600VAC, 2kVDC
Current rating:
2 AMP
Resistance:
244.0 Ω/km at 20ºC max.
Minimum Bend Radius, Long-Term:
0.53"

Detailed images

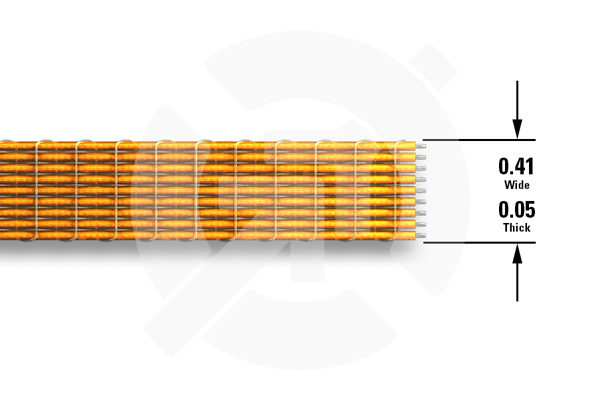

9 Way, Kapton Insulated Ribbon Cable
AGP is the only supplier to offer and ship Kapton insulated wire on a spool, instead of loose in a bag.
