Subminiature-C - CF Feedthroughs

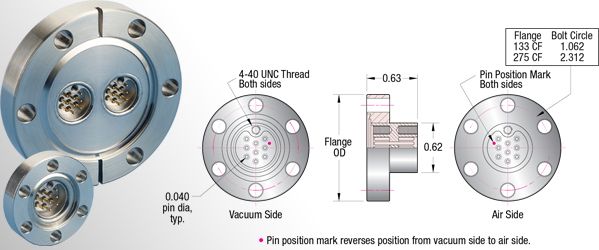

Sub-C Feedthroughs Drawing

Subminiature-C (Sub-C) Feedthrough, Conflat CF Flanges.

Subminiature-C multipin feedthroughs are designed for applications where space is limited inside your vacuum chamber.

Sub-C Feedthroughs Drawing

Subminiature-C (Sub-C) Feedthrough, Conflat CF Flanges.

Subminiature-C multipin hermetic feedthroughs are designed for applications where space is limited inside your vacuum chamber.

This compact and unique 9-pin design allows installation into a 1.33-inch CF flange or two feedthroughs on a 2.75-inch CF flange.  Nine gold-plated pins are arranged in a straight through pin-to-pin design and are hermetically sealed and electrically insulated in a stainless steel shell using the latest in glass-ceramic bonding technology.

Subminiature-C Feedthrough Specifications
Electrical
  • Voltage, Maximum
  • Current, Per Pin Maximum @ 20ºC

500 VDC
5 Amps*
*  For proper heat dissipation, a maximum of 20% of the pins on a feedthrough may carry the maximum pin current at any given time.

Subminiature-C Feedthrough Material Specifications
Material
  • Shell
  • Pins
  • Seal / Insulator
  • Connector, Air
  • Connector, Vacuum
  • Connector, Vacuum, High Temperature


304 Stainless Steel
Au plated, Ni-Fe alloy
Glass-Ceramic
Delrin®
Peek*
Macor® Cermic

*  Peek is a Polyether-ether-ketone thermoplastic.

Feedthrough Vacuum Range Specifications
Vacuum Range
  • UHV, Ultrahigh vacuum

1x10-10 Torr
Feedthrough Temperature Range Specifications
Temperature Range
  • Feedthrough
  • Flange Mount, Conflat
  • Connector / Cable, Air
  • Connector / Cable, Vacuum
  • Connector, Ceramic
  • Thermal Gradient


-200ºC to 250ºC
-200ºC to 450ºC
80ºC
250ºC
400ºC
25ºC / Minute Maximum

* Overall assembly ratings must be adjusted to that of the lowest rated component.

Sub C Feedthrough flange "kit" additional features:

  • All of the above features (Feedthrough Flange)
  • In Vacuum cable assembly:
    • PEEK Sub-C connector to Kapton insulated cable assembly, 19-inches long.
  • Air Side cable assembly:
    • Delrine Sub C connector to cable assembly, 96-inches long.

All feedthroughs are mounted on CF Flanges that incorporate the industry standard "captured copper gasket" sealing principle, making it easy to mount to your existing CF Flange ports.

9C-KIT-133, 9-Pin Feedthrough Kit and Cable Assemblies
Quick View
100000
Average: 3.6 (11 votes)
$515.00

9-Pin Kit, C-Type Feedthrough on a 1.33 CF Flange.

Kit included a Ultra High Vacuum cable and air service cable.

$515.00
9C-133, 9-Pin Feedthrough on a 1.33
Quick View
100010
Average: 5 (2 votes)
$265.00

9-Pin Subminiature-C Feedthrough on a 1.33" CF Flange.

$265.00
9C-275, 9-Pin Feedthrough on a 2.75
Quick View
100013
Average: 5 (1 vote)
$295.00

9-Pin, Subminiature-C Feedthrough on a 2.75 CF Flange.

$295.00
9C2-275, 18-Pin Feedthrough on a 2.75
Quick View
100012
Average: 5 (1 vote)
$520.00

18-Pin (Two 9-Pin), Subminiature-C Feedthroughs on a 2.75" CF Flange.

$520.00
