26 AWG, Stranded Kapton Insulated High Voltage Wire

26 AWG, Stranded - Kapton Insulated High Voltage Wire

26 AWG, Stranded - Kapton Insulated High Voltage Wire

4 Review(s)

26 AWG, Kapton Insulated High Voltage Wire, 3kVAC / 10kVDC.
15' ft. long.



To receive cable in one continuous length, order multiple quantities and select 'YES' on the "One Length" option below.

Part Number:
100726
Stock Level:
in stock
Weight (lbs):
0.1

$83.00
x 15' ft.

Specifications

Model Number:
TYP22-15'
Materials:
Kapton, Ag-plt Cu
RoHS Compliant:
Yes
Max. Bake Temperature:
250ºC
Max. Operating Temperature:
250ºC
Max. Vacuum Level:
1x10E-10 Torr
Wire Gauge:
26 AWG
Voltage rating:
3kVAC, 10kVDC
Current rating:
3 AMP
Resistance:
159.0 Ω/km at 20ºC max.
Minimum Bend Radius, Long-Term:
0.55"

Detailed images

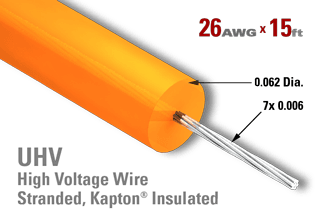

26 AWG, Stranded - Kapton Insulated High Voltage Wire
AGP is the only supplier to offer and ship Kapton insulated wire on a spool, instead of loose in a bag.
