30 AWG - Type-K Thermocouple Cable

30 AWG - Type-K Thermocouple Wire / Cable

30 AWG - Type-K Thermocouple Wire / Cable

0 Review(s)

30 AWG, Type-K Thermocouple Cable, (+) Chromel, (-) Alumel wire pair, Kapton Insulated.

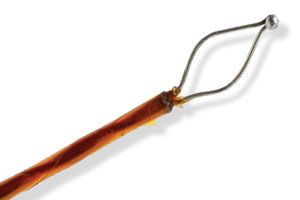

19", 39", 96" and 30' Lengths.  Custom lengths and/or 'Hot-Junction' fused thermocouple lead termination are also available (see detailed images) please call.

Part Number:
100770
Stock Level:
in stock
Weight (lbs):
0.10

$27.00

Specifications

Model Number:
TYP7-19" or TYP7-39" or TYP7-96"
Materials:
Kapton, Chromel, Alumel
RoHS Compliant:
Yes
Max. Bake Temperature:
250ºC
Max. Operating Temperature:
250ºC
Max. Vacuum Level:
1x10E-10 Torr
Wire Gauge:
30 AWG
Voltage rating:
Millivolts
Current rating:
Milliamps
Minimum Bend Radius, Long-Term:
0.28"

Detailed images

AGP is the only supplier to offer and ship Kapton insulated wire on a spool, instead of loose in a bag.
