UHV Macor Connector 9-C - Female

0 Review(s)

9 Pin Sub-C Female Macor Connector

9-Pin female subminiature-C Macor® (glass-ceramic) connector.Macor ceramic connectors are designed for high temperature and extreme environments not suitable for UHV PEEK polymer connectors. They're used with either non-insulated or ceramic bead insulated wire. Please note that wires must be threaded through the connector back-piece before crimping contacts. Macor is an impermeable glass-ceramic material that does not absorb gas or water vapor... and is free of carbon compounds. Macor can be baked to 700°C if disassembled... without screws or contacts.

Part Number:
112700
Stock Level:
in stock
Weight (lbs):
0.1

$340.00

Specifications

Materials:
Macor, SS
RoHS Compliant:
Yes
Max. Bake Temperature:
700ºC
Max. Operating Temperature:
300ºC
Max. Vacuum Level:
1x10E-11 Torr
Number Contacts:

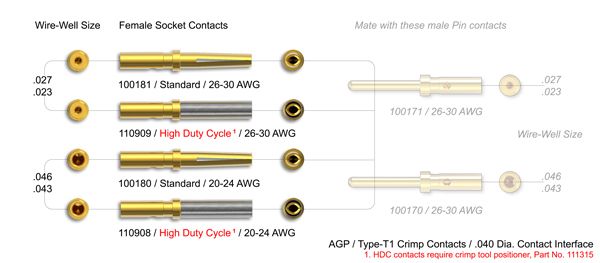

9 (Contacts sold separately)
Gender:
Female
Length / Height:
0.73
Min. Operating Temperature:
-200ºC
OD:
0.62
Other Information:

Thread wires through back-piece before crimping contacts (contacts sold separately)
