UHV Macor Connector, 9-C - Male

UHV Macor Connector, 9C, Male

UHV Macor Connector, 9C, Male

4 Review(s)

9 Pin Sub-C Male Macor Connector

9-Pin male subminiature-C Macor® (glass-ceramic) connector.Macor ceramic connectors are designed for high temperature and extreme environments not suitable for UHV PEEK polymer connectors. They're used with either non-insulated or ceramic bead insulated wire. Please note that wires must be threaded through the connector back-piece before crimping contacts. Macor is an impermeable glass-ceramic material that does not absorb gas or water vapor... and is free of carbon compounds. Macor can be baked to 700°C if disassembled... without screws or contacts. Please note that contacts are sold separately and are available in two wire gauge ranges... 20-24 and 26-30 AWG.

Part Number:
112701
Stock Level:
in stock
Weight (lbs):
0.1

$376.00

Specifications

Model Number:
9C-MCP
Materials:
Macor, SS
RoHS Compliant:
Yes
Max. Bake Temperature:
700ºC
Max. Operating Temperature:
300ºC
Max. Vacuum Level:
1x10E-11 Torr
Number Contacts:
9 (Contacts sold separately)
Gender:
Male
Length / Height:
0.64
Min. Operating Temperature:
-200ºC
OD:
0.62
Other Information:

Thread wires through back-piece before crimping contacts (contacts sold separately)

Detailed images

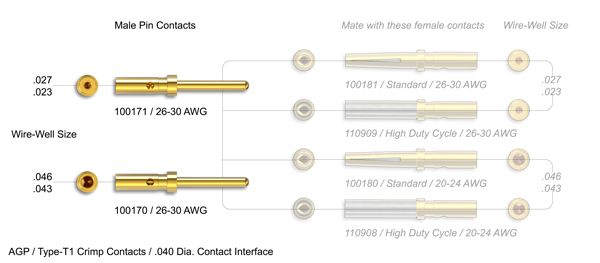

Contacts
