9 Pin Sub-C Female PEEK Connector
9 pin, female PEEK Subminiature-C connector. Please note that contacts are sold separately and are available in two wire gauge ranges... 20-24 and 26-30 AWG.
| Model Number: | 9C-PKS |
| Materials: | PEEK, SS |
| RoHS Compliant: | Yes |
| Max. Bake Temperature: | 250ºC |
| Max. Operating Temperature: | 250ºC |
| Max. Vacuum Level: | 1x10E-10 Torr |
| Number Contacts: | 9 (Contacts sold separately) |
| Gender: | Female |
9-Pin Subminiature-C Feedthrough on a 1.33" CF Flange.
Two (2) 9-Pin, Subminiature-C Feedthroughs on an ISO NW40 KF Flange
18-Pin (Two 9-Pin), Subminiature-C Feedthroughs on a 2.75" CF Flange.
9-Pin, Subminiature-C Feedthrough on an ISO NW40 KF Flange
9-Pin, Subminiature-C Feedthrough on an ISO NW16 KF Flange
9-Pin, Subminiature-C Feedthrough on a 2.75 CF Flange.

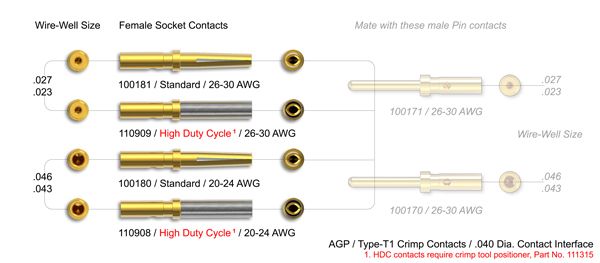

110908 — 20-24 AWG wire diameter, female contacts with stainless steel sleeve
110909 — 26-30 AWG wire diameter, female contacts with stainless steel sleeve (see 'option' on detail page)
10 per package — High duty connect/disconnect cycles (3+ cycles per day)
See product details for complete list of contacts compatible with this tool.
