Viewport, Corning 7056 glass, 2.69" view diameter, mounted on a 4.50" CF flange.

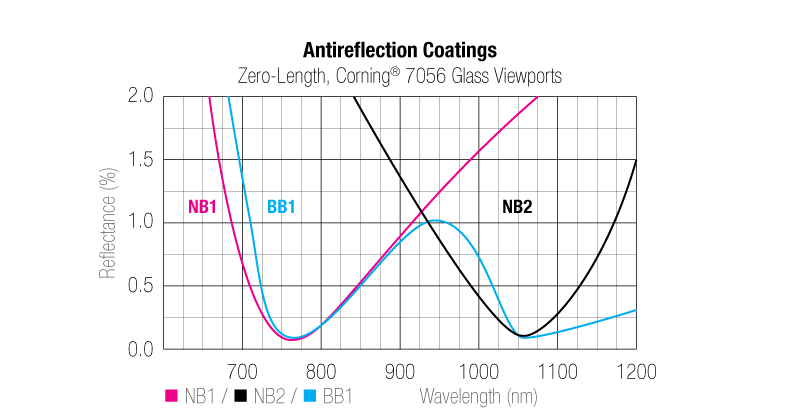

Optional AR Coatings :
NB1 Narrow Band for 780nm
NB2 Narrow Band for 1064nm
BB1 Broadband for 780~1064nm
| Larson Electronic Glass - Part Number: | 111212 |
| Larson Electronic Glass - Model Number: | VP-250-F4 |
| Model Number: | VPG-2.7-450 |
| Materials: | Corning 7056 glass, SS |
| RoHS Compliant: | Yes |
| Max. Bake Temperature: | 250ºC |
| Max. Operating Temperature: | 250ºC |
| Max. Vacuum Level: | 1x10E-10 Torr |
4.50" CF Conflat® flange, OFHC copper gasket, 2.51 ID.10 per package.
4.50" CF Conflat® flange, OFHC copper gasket, 2.80 ID.10 per package.
