Viewport Shutter, AccuFlex 4.50 CF Flanged
Part Number: 113275

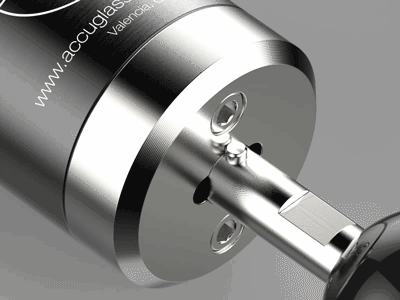

AccuFlex, flexible viewport shutter, 90 degree swing and 100% shielding of 4.50 Conflat® CF Flanged fitted glass, quartz, and/or other substrate viewports.
$1,237.00
AccuFlex Vacuum Viewport Shutters
Replacement Foil Blade Kit
Part Number: 113276
AccuFlex Replacement shutter foil / blade kit
$50.00
AccuFlex™ Flexible Viewport Shutters
AccuFlex™ flexible viewport shutters offer 100% shielding for Conflat® CF fitted glass, quartz, and/or other substrate vacuum viewports used in vacuum evaporation and coating applications.

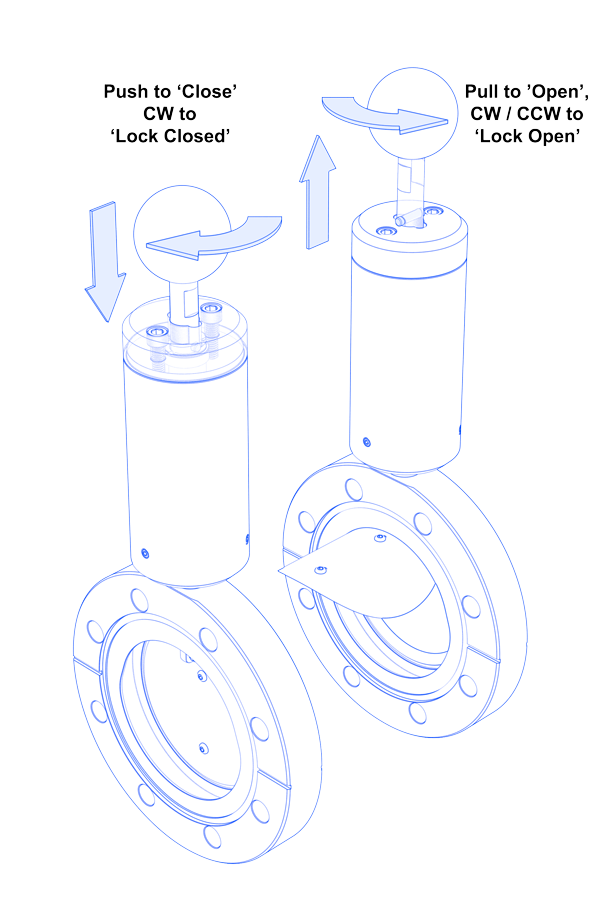

AccuFlex™ viewport shutters offer the largest port apertures available on the market today. Our unique flexible shutter design offers a full 90 degree shutter swing angle, when mated with CF flanged ports having largest standard tube diameter... i.e. a 4.50 CF flange fitted with a 2.50 diameter tube and 2.37 diameter bore.
The flexible stainless steel foil shutter is designed for fast and easy replacement, for when extended coating process buildup begins to reduce shutter flexibility. See our shutter replacement /maintenance kits for more information.
Features
- Full port aperture
- 90° Swing angle
- Replaceable / flexible shutter blade
- Edge-welded metal bellows
- UHV compatible construction
- Temperature rated to 250°C
- Double-sided Conflat® compatible mount
Specifications
| Material | |
| Flange, Stainless Steel | 304 SS |
| Bellows, Edge-Welded | AM-350 |
| Vacuum Range 1 | |
| UHV, Ultrahigh Vacuum | 1x10E-10 Torr |
| HV, High Vacuum | 1x10E-8 Torr |
| Temperature Range 2 | |
| Shutter Assembly | 250°C |
| Flange, CF | 450°C |
| Flange, ISO NW | 150°C |
| Notes |
- Leak tested to 5x10-10 Standard cc/sec of He.
- Overall assembly ratings must be adjusted to that of its lowest rated component.
- Shutter must be installed / mounted on a mating CF port that's fitted with a minimum 2.375 tube ID.
- Unless specified otherwise, dimensional units are expressed in inches.
