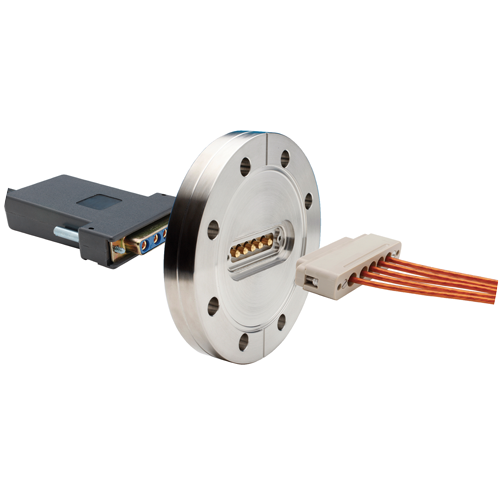

5-Pin Power Feedthrough on a 4.50" CF Flange
5- Pin, D-Type Feedthrough, Consisting of 5 Power Pins on a 4.50" CF Flange.
5- Pin, D-Type Feedthrough, Consisting of 5 Power Pins on a 4.50" CF Flange.
3-Pin, D-Type Feedthrough, Consisting of 3 Power Pins on a 4.50" CF Flange.

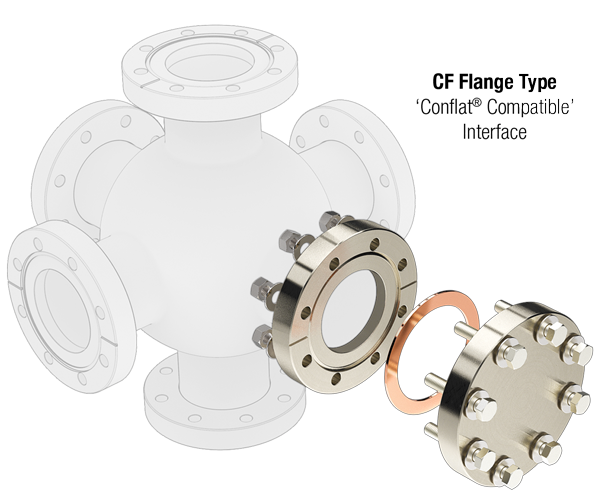

These Power-D CF feedthroughs are mounted on CF Flanges that incorporate the industry standard "captured copper gasket" sealing principle, making it easy to mount to your existing CF Flange ports.
Accu-Glass Power-DTM — hermetic, high-current power feedthroughs, are designed to IEC 807-2 and DESC 85039 combination subminiature-D interface specifications.
Three (3) and five (5) pin feedthroughs, with Au plated NiFe alloy pins, rated to 20 Amps per pin, are hermetically sealed and insulated into 304 stainless steel subminiature-D shells using the latest in glass-ceramic / metal bonding technology. Mating cable assemblies with PEEK polymer connectors and Kapton® insulated leads are also available to meet the rigorous demands of UHV environments.
Vacuum and air-side cable assemblies, individual connectors, contacts, wiring tools, and other accessories can be found starting on page 40. Custom Power-DTM solutions are also available on request. Please contact the factory for more information.
Electrical | |
Voltage 1, Maximum | 500 VDC |
Current, Per Pin Maximum @ 20°C | 20 A |
Material | |
Shell | 304 Stainless Steel |
Pins | Au plated, Ni-Fe alloy |
Seal / Insulator | Glass-Ceramic |
Connector, Air | Delrin® Polymer |
Connector, Vacuum | PEEK Polymer |
Vacuum Range | |
UHV, Ultrahigh vacuum | 1x10E-10 Torr |
HV, High vacuum | 1x10E-8 Torr |
Temperature Range | |
Feedthrough | 250°C |
Flange Mount, Conflat® | 450°C |
Flange Mount, ISO | 150°C |
Connector / Cable, Air | 80°C |
Connector / Cable, Vacuum, PEEK | 250°C |
Thermal Gradient | 25°C / Minute Maximum |
