Connector to Cable - 2 Thermocouple Pair 2 Power Pins

Connector to Cable - 2 Thermocouple Pair 2 Power Pins

2 Thermocouple Pair (Type-K) and 2 Power (12 AWG) Kapton Insulated Cables with Chromel and Alumel Sockets (Female), 2 Power Sockets, and a PEEK Sub-D Type Connector on one end.

Options of 19" or 39" inches are available here.   Custom lengths are also available, please call.

Part Number:
100820
Weight: 0.1 lbs
$347.00
  • Specifications
  • Downloads
  • Detailed Images
Model Number:15KAP-4TC2P-19SC or 15KAP-4TC2P-39SC
Materials:PEEK, Kapton, Chromel, Alumel
RoHS Compliant:Yes
Max. Bake Temperature:250ºC
Max. Operating Temperature:250ºC
Max. Vacuum Level:1x10E-10 Torr
Current rating:TC Pins - Milliamps, Power - 20 AMP
Number Contacts:6, 2-TC pairs and 2-Power
Gender:Female
Contact Material:Chromel, Alumel, Cu alloy-Au-plt
Other Information:

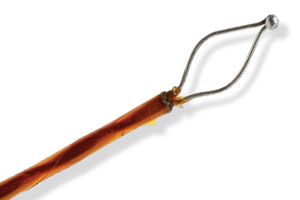

Thermocouple feedthroughs do not measure temperature, but merely provide a conduit to bring the EMF signal generated at a thermocouple junction through a vacuum vessel wall to an external voltage measuring or temperature readout instrument. Type-K thermocouples with positive Chromel wires and negative Alumel wires are recommended for use in clean oxidizing atmospheres. The maximum operating temperature for these alloys is 1260 C for larger wire sizes. The useful temperature measuring range for a Type-K thermocouple is between (-)200 C to (+)1250 C.
