Home › 2.75" CF flange, Demountable Accu-Sol™ Glass Viewport

2.75" CF flange, Demountable Accu-Sol™ Glass Viewport

  Accu-Sol™ Demountable viewport,  1.19 view diameter, mounted on a 2.75" CF flange.

Part Number:
112667

Weight: 0.25 lbs

$127.00
  • Specifications
  • Downloads
  • Detailed Images

Model Number:VPD-1.19-275
RoHS Compliant:Yes
Max. Bake Temperature:150ºC
Max. Operating Temperature:150ºC
Max. Vacuum Level:1x10E-8 Torr
Depth / Thickness:Glass Thickness - 0.158"

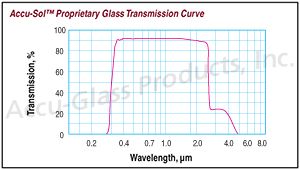

Operating Wavelength:350nm to 1500nm
Thermal Gradient:20ºC / minute maximum
Other Information:

View Diameter - 1.19
