Coax Contact - Female (TYPE: T-4)

Coax Contact - Female TYPE: T-4

Coaxial Socket, unassembled with internal socket.
Two crimp tools are needed to install this coax socket: PN - 100908, and 100190. See below for assembly drawing.
Part Number:
100909
Weight: 0.1 lbs
$56.00
  • Specifications
  • Downloads
  • Detailed Images
Model Number:CXS-1
Materials:Cu alloy, Au-plt
RoHS Compliant:Yes
Max. Bake Temperature:250ºC
Max. Operating Temperature:250ºC
Max. Vacuum Level:1x10E-10 Torr
Number Contacts:1
Gender:Female
Contact Material:Cu alloy, Au-plt

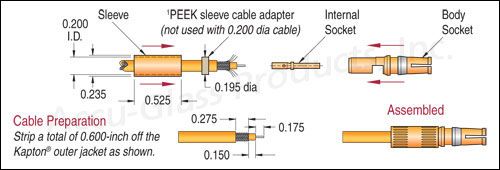

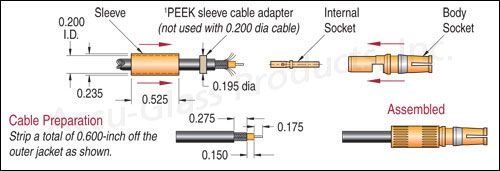

Assembly Drawing:
