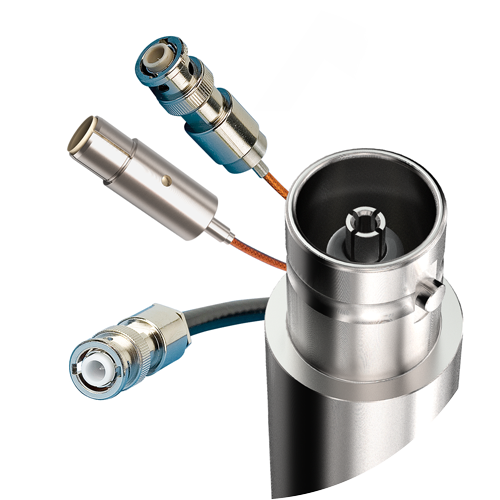

MHV (Miniature High Voltage) Coaxial Feedthroughs

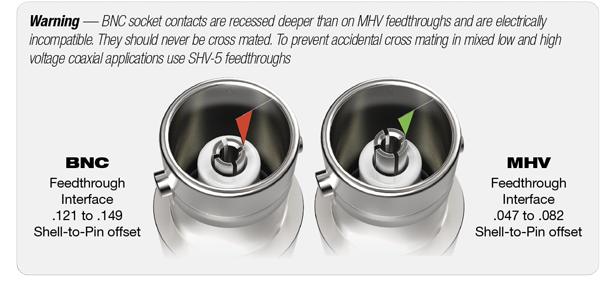

The Miniature High Voltage connector, usually referred to as an MHV coaxial connection, is commonly used in conjunction with low noise 50-Ohm instrumentation lines.  Accu-Glass Products' MHV coaxial feedthroughs are constructed with either floating shields or grounded shields. interface

Floating shields provide two concentric conductors: one outer conductor concentric with, and enclosing, a cylindrical center conductor.  Both electrical paths are electrically isolated from the vacuum flange.

Grounded shields provide only one electrical path that is electrically isolated from the vacuum flange.  With grounded shields, the shield and vacuum flange are electrically common.

Ultrahigh (UHV) compatible coaxial cable assemblies are available to meet the needs of most in-vacuum, low noise instrumentation cable applications.  The vacuum side of a single ended, grounded and floating MHV feedthrough consists of a 0.094 inch diameter conductor pin that mates perfectly with Accu-Glass' grounded or floating AccuFast™ connector interface.  These can also be used for High Vacuum (HV) applications.

Glow Discharge Graphs

Features

  • MHV Coaxial Interface
  • Grounded and Floating Shield
  • Single and Double Ended configurations
  • Kapton® insulated 50-Ohm cable
  • High temperature rated to 250°C
  • UHV compatible construction
  • Conflat® and ISO KF compatible mounts
  • Air service cables / connectors
  • Custom solutions on request


Specifications

Electrical
Voltage 1, Maximum
   Grounded Shield5,000 VDC
   Floating Shield2,500 VDC
   Current, Max @ 20°C3 A
Material
Shell304 Ss
Pin / Conductor304 Ss
Insulation, CeramicAlumina
Connector, Vacuum 2
   AccuFast™PEEK / Ss
   MHVPEEK / Brass / Ss
Connector, AirComposite
Cable InsulationKapton®
Vacuum Range
UHV, Ultrahigh vacuum1x10E-10 Torr
HV, High vacuum1x10E-8 Torr
Temperature Range
Feedthrough-200 to 250°C
Flange, Conflat®450°C
Flange, ISO150°C
Connector / Cable, Air165°C
Connector / Cable, UHV PEEK250°C
Thermal Gradient, Maximum25°C/minute
Notes
  1. Electrical ratings are maximum test values, with feedthrough's vacuum side at ≤ 1x10E-4 Torr. Feedthroughs are intended for instrumentation applications carrying low level signal voltage and current.
  2. PEEK is a polyether ether ketone thermoplastic.
  3. Overall assembly ratings must be adjusted to that of its lowest rated component. For cryogenic service, the lowest recommended temperature is -200°C
  4. Connectors and cables are not included with feedthrough and must be purchased separately.
