3 Kapton Coaxial Cables Connected to a Male PEEK D-Type Connector

Connector to Cable - 3 Coaxial - Male

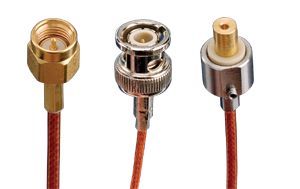

3 Kapton Coaxial Cables & a PEEK D-Type (male) Connector on one end and "Connector #2" option on the other.

Options of 19" or 39" inches are available here.   Custom lengths are also available, please call.

Part Number:
110966
Weight: 0.1 lbs
$435.00
  • Specifications
  • Downloads
  • Detailed Images
Model Number:15KAP-3CX-19PC or 15KAP-3CX-39PC
Materials:Kapton®, PEEK
RoHS Compliant:Yes
Max. Bake Temperature:250ºC
Max. Operating Temperature:250ºC
Max. Vacuum Level:1x10E-10 Torr
Number Contacts:3
Gender:Male
Contact Material:Ni-Fe alloy, Au-plt
