5 Kapton Coaxial Cables Connected to a Female PEEK D-Type Connector

Connector to Cable - 5 Coaxial - Female

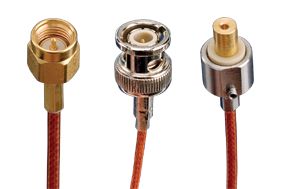

5 Kapton Coaxial Cables & a PEEK D-Type (female) Connector on one end and "Connector #2" option on the other.

Options of 19" or 39" inches are available here.   Custom lengths are also available, please call.

Part Number:
100640
Weight: 0.25 lbs
$646.00
  • Specifications
  • Downloads
  • Detailed Images
Model Number:25KAP-5CX-19SC or 25KAP-5CX-39SC
Materials:Kapton®, PEEK
RoHS Compliant:Yes
Max. Bake Temperature:250ºC
Max. Operating Temperature:250ºC
Max. Vacuum Level:1x10E-10 Torr
Number Contacts:5
Gender:Female
Contact Material:Ni-Fe alloy, Au-plt
