.040 Diameter male pin, gold plated contacts / Wire-well accepts 20~24 AWG wire size / 10-Pack
For 26-30 AWG size (100171, sold separately) please change 'Wire Acceptance' selection below...
| Model Number | GP-10 |
| Materials | Copper alloy, Au-plt |
| RoHS Compliant | Yes |
| Max. Bake Temperature | 250ºC |
| Max. Operating Temperature | 250ºC |
| Max. Vacuum Level | 1x10E-10 Torr |
| Current rating | 5 AMP |
| Number Contacts | 10 Per Package |
| Gender | Male |
| Contact Material | Copper alloy, Au-plt |

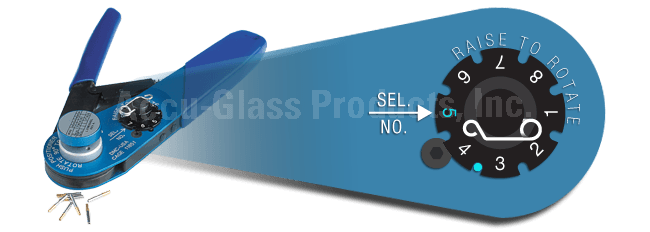

See product details for complete list of contacts compatible with this tool.

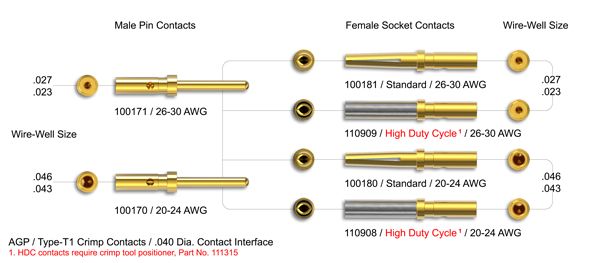

110908 — 20-24 AWG wire diameter, female contacts with stainless steel sleeve
110909 — 26-30 AWG wire diameter, female contacts with stainless steel sleeve (see 'option' on detail page)
10 per package — High duty connect/disconnect cycles (3+ cycles per day)
.040 Diameter female socket, gold-plated contacts / Wire-well accepts 20~24 AWG wire size / 25-Pack
