Connector to Cable - Accu-Fast™ 500S

0 Review(s)

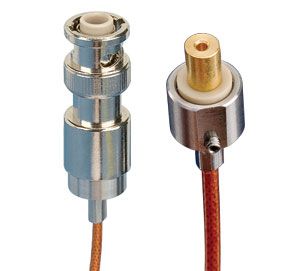

Kapton insulated 26 AWG, 50 Ohm coaxial cable with "Accufast™ 500S" (grounded) connector on one end and "Connector #2" option on the other.

This cable mates directly to the vacuum side of our Single-ended, Grounded-shield MHV and SHV-5 feedthroughs.

Options of 19" or 39" inches are available here.   Custom lengths are also available, please call.

Part Number:
110196
Stock Level:
in stock
Weight (lbs):
0.15

$175.00

Specifications

Materials:
SS, PEEK, Kapton, BeCu-Au-plt
RoHS Compliant:
Yes
Max. Bake Temperature:
250ºC
Max. Operating Temperature:
250ºC
Max. Vacuum Level:
1x10E-10 Torr
Number Contacts:
1
Gender:
Female
Contact Material:
BeCu, Au-plt
