Connector to Cable - Accu-Fast™ 875S

Share this:


Connector to Cable - Accu-Fast™ 875S

3 Review(s)

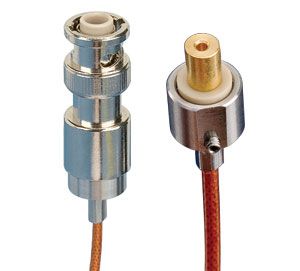

Kapton insulated 26 AWG, 50 Ohm coaxial cable with "Accufast™ 875S" (floating) connector on one end and "Connector #2" option on the other.

This cable mates directly with our Single-ended, Floating-shield MHV and SHV-5 feedthroughs.

Options of 19" or 39" inches are available here.   Custom lengths are also available, please call.

Part Number:
110192
Stock Level:
in stock
Weight (lbs):
0.20

$175.00

Specifications

Model Number:
KAP-1CX-19AF875S or KAP-1CX-39AF875S
Materials:
SS, PEEK, Kapton, BeCu-Au-plt
RoHS Compliant:
Yes
Max. Bake Temperature:
250ºC
Max. Operating Temperature:
250ºC
Max. Vacuum Level:
1x10E-10 Torr
Number Contacts:
1
Gender:
Female
Contact Material:
BeCu, Au-plt
