Contacts, Type-T1 High Duty Cycle / Female

Contacts, Type-T1 High Duty Cycle / Female

Contacts, Type-T1 High Duty Cycle - Female

1 Review(s)

10ea. Female, gold plated socket contacts with stainless steel sleeve.  Select from one of two (2) wire well diameters using the 'Wire Acceptance' option below... 110908 for 20-24 AWG or 110909 for 26-30 AWG wire diameter.

Caution : TYPE-T1h contacts can be crimped using a DCT-1 TYPE-T1 (100190) crimp tool only if fitted with a DCT-P-2 (111315) positioner. Otherwise a DCT-2 TYPE-T2 (100193) crimp tool is required.


Part Number:
110908
Stock Level:
in stock
Weight (lbs):
0.10

$39.00

Specifications

Model Number:
GS-10-S, or GS2-10-S
Materials:
Copper alloy Au-plt, SS
RoHS Compliant:
Yes
Max. Bake Temperature:
250ºC
Max. Operating Temperature:
250ºC
Max. Vacuum Level:
1x10E-10 Torr
Current rating:
5 AMP
Number Contacts:
10 Per Package
Gender:
Female
Contact Material:
Copper alloy, Au-plt

Detailed images

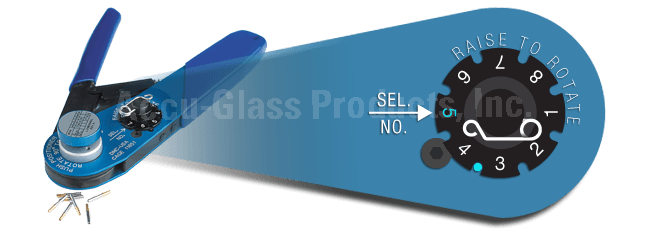

Crimp tool setting

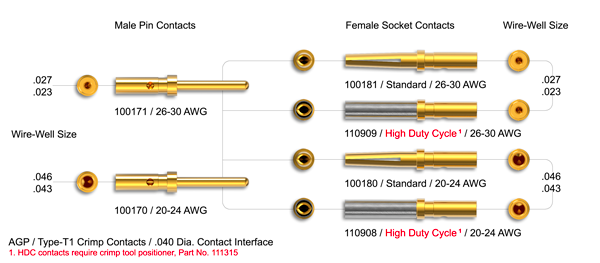

Contacts
