100 Single Fiber UV / VIS, 1.33" CF Flange
Part Number: 112424
Fiber Optic Feedthrough (100 micron UV/VIS), mounted on a 133" CF Flange.Male SMA 905 connectors on each end.
$840.00
Step-Index, UV/VIS Fiber Optic CF Feedthrough Flanges
100 Single Fiber, 2.75 CF, UV/VIS
Part Number: 112425
Fiber Optic Feedthrough (100 micron UV/VIS), mounted on a 275" CF Flange. Male SMA 905 connectors on each end.
$857.00
100 Dual Fiber, 2.75 CF, UV/VIS
Part Number: 112426
2ea. Fibre Optic Feedthrough (100 micron UV/VIS), mounted on a 275" CF Flange. Male SMA 905 connectors on each end.
$1,518.00
200 Single Fiber, 1.33 CF, UV/VIS
Part Number: 105000
Fiber Optic Feedthrough (200 micron UV/VIS), mounted on a 133" CF Flange.Male SMA 905 connectors on each end.
$575.00
200 Single Fiber, 2.75 CF, UV/VIS
Part Number: 105001
Fiber Optic Feedthrough (200 micron UV/VIS), mounted on a 275" CF Flange. Male SMA 905 connectors on each end.
$598.00
200 Dual Fiber, 2.75 CF, UV/VIS
Part Number: 112300
2ea. Fibre Optic Feedthrough (200 micron UV/VIS), mounted on a 275" CF Flange. Male SMA 905 connectors on each end.
$1,047.00
200 Seven Fiber, 2.75 CF, UV/VIS
Part Number: 112815
7ea. Fiber Optic feedthroughs sealed in a single body (200 micron UV/VIS), mounted on a 275" CF Flange.
$3,393.00
400 Single Fiber, 1.33 CF, UV/VIS
Part Number: 105100
Fiber Optic Feedthrough (400 micron UV/VIS), mounted on a 133" CF Flange.Male SMA 905 connectors on each end.
$587.00
400 Single Fiber, 2.75 CF, UV/VIS
Part Number: 105101
Fiber Optic Feedthrough (400 micron UV/VIS), mounted on a 275" CF Flange. Male SMA 905 connectors on each end.
$604.00
400 Dual Fiber, 2.75 CF, UV/VIS
Part Number: 112301
2ea. Fibre Optic Feedthrough (400 micron UV/VIS), mounted on a 275" CF Flange. Male SMA 905 connectors on each end.
$1,052.00
400 Seven Fiber, 2.75 CF, UV/VIS
Part Number: 112816
7ea. Fiber Optic feedthroughs sealed in a single body (400 micron UV/VIS), mounted on a 275" CF Flange.
$3,278.00
600 Single Fiber, 1.33 CF, UV/VIS
Part Number: 105200
Fiber Optic Feedthrough (600 micron UV/VIS), mounted on a 133" CF Flange.Male SMA 905 connectors on each end.
$592.00
600 Single Fiber, 2.75 CF, UV/VIS
Part Number: 105201
Fiber Optic Feedthrough (600 micron UV/VIS), mounted on a 275" CF Flange. Male SMA 905 connectors on each end.
$615.00
600 Dual Fiber, 2.75 CF, UV/VIS
Part Number: 112302
2ea. Fibre Optic Feedthrough (600 micron UV/VIS), mounted on a 275" CF Flange. Male SMA 905 connectors on each end.
$1,058.00
600 Seven Fiber, 2.75 CF, UV/VIS
Part Number: 112817
7ea. Fiber Optic feedthroughs sealed in a single body (600 micron UV/VIS), mounted on a 275" CF Flange.
$3,163.00
1000 Single Fiber, 1.33 CF, UV/VIS
Part Number: 105300
Fiber Optic Feedthrough (1000 micron UV/VIS), mounted on a 133" CF Flange.Male SMA 905 connectors on each end.
$667.00
1000 Single Fiber, 2.75 CF, UV/VIS
Part Number: 105301
Fiber Optic Feedthrough (1000 micron UV/VIS), mounted on a 275" CF Flange. Male SMA 905 connectors on each end.
$673.00
1000 Dual Fiber, 2.75 CF, UV/VIS
Part Number: 112303
2ea. Fibre Optic Feedthrough (1000 micron UV/VIS), mounted on a 275" CF Flange. Male SMA 905 connectors on each end.
$1,162.00
1000 Seven Fiber, 2.75 CF, UV/VIS
Part Number: 112818
7ea. Fiber Optic feedthroughs sealed in a single body (1000 micron UV/VIS), mounted on a 275" CF Flange.
$3,048.00
SMA to SMA 905 Vacuum Service Fiber Optic Coupler
Part Number: 105450
Vented Fiber Optic Cable coupler used to mate two SMA 905 Fiber Optic cables. Vacuum Service, with vent hole.
$38.00
█ UV/VIS Fiber Optic Feedthroughs on CF

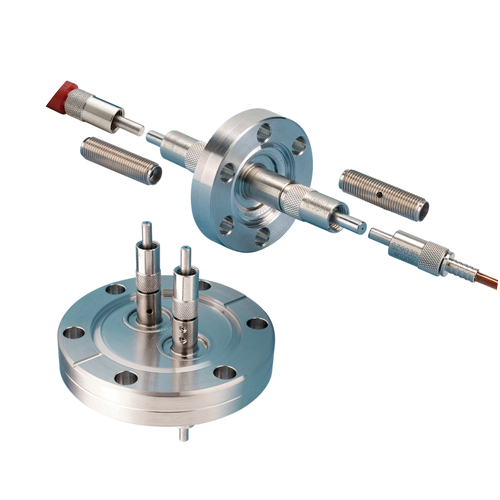

Accu-Glass offers fiber optic feedthroughs with 62.5, 100, 200, 400, 600, and 1000 micron core diameters. These feedthroughs are ideally suited for industrial and/or scientific research applications requiring air-to-vacuum fiber optic transitions/connections. Multimode fibers (both Step and Graded Index types) are hermetically sealed into a stainless steel shell, using the latest in glass-ceramic-metal bonding technology. Standard fiber optic feedthroughs are terminated with premium SMA 905 connectors on both vacuum and air sides. FC and ST connections are also available.
Polyimide buffered optical fiber cable assemblies are offered to meet the rigorous demands of ultrahigh vacuum environments. These optical fibers are of a core-and-cladding composite construction. The core, or the filament that guides the light, consists of a thin strand of high-transmission fused silica. The cladding is an outer layer of doped, lower refractive-index fused silica. This dual-layer design tightly confines light to the fiber's central core, thus delivering the maximum amount of light possible at the fiber's destination. Fiber diameters are closely controlled during the drawing process, allowing fibers to center well in connectors and boast low loss rates.
Graded-index multimode fiber bridges the gap between single-mode and step-index multimode fibers, giving up some bandwidth for ease of termination and light launch. It's more economical than single-mode fiber, and primarily used for data communication (not as useful for power transmission) applications requiring medium run distances of 2 to 15 km lengths.
- █ High-OH, 200-800nm UV/VIS
For UV/VIS applications only. Use ≤ 15 meter lengths to avoid high attenuation.
- █ Ultra Low-OH, 400–2200nm VIS/NIR
For extremely long length VIS/NIR applications. Lowest possible light attenuation.
Features
- UHV compatible construction
- 100, 200, 400, 600, and 1000μm
UV, VIS and NIR Step Index fibers - 62.5μm NIR Graded Index fiber
- SMA 905 premium connector interface
- High temperature rated to 250°C
- Conflat® and ISO KF compatible mounts
- Polyimide buffered vacuum rated optical cables
Specifications
| Material | |
| Hardware, Stainless Steel | 304 |
| Fiber Construction | |
| Core, Silica | SiO2 |
| Cladding, Fluorine-Doped Silica | F-SiO2 |
| Buffer, Aluminum (Feedthrough) | Al |
| Buffer, Polyimide (Cable) | PI |
| Vacuum Range | |
| UHV, Ultrahigh vacuum | 1x10E-10 Torr |
| HV, High vacuum | 1x10E-8 Torr |
| Temperature Range 1 | |
| Feedthrough | -200 to 250°C |
| Flange, Conflat® | -200 to 450°C |
| Flange, ISO | 150°C |
| Connector / Cable, Air | 80°C |
| Connector / Cable, UHV | -65 to 200°C |
| Thermal Gradient, Maximum | 25°C/minute |
| Step Index Fiber 2 | |
| Operational Wavelengths | |
| █ UV/VIS, High-OH | 200-800 nm |
| █ VIS/NIR, Ultra Low-OH | 400-2200 nm |
| Diameters, Five (5) Core | 100 to 1000 µm |
| Aperture, 24.8° Numerical | 0.22 ± 0.02 |
| Core / Cladding Ratio 3 | 1 : 1.1 |
| Power | < 1W |
| Bend Radius 4 | 200x |
| Momentary | 200x |
| Long Term | 400x |
| Insertion Loss 5, Interconnect | -0.8 to -2.0 dB |
| Graded Index Fiber | |
| Core Diameter | 62.5 µm |
| Clad Diameter | 125 µm |
| Operational Wavelengths 6, Two | |
| Optimized for use @ | 850 nm |
| Optimized for use @ | 1300 nm |
| Aperture, Numerical | 0.27 ± 0.02 |
| Bend Radius 4 | |
| Momentary | 400x |
| Long Term | 800x |
| Attenuation @ 850, and 1300 nm | |
| @ 850 nm | ≤ 3.0 dB |
| @ 1,300 nm | ≤ 0.8 dB |
| Notes |
- Overall assembly ratings must be adjusted to that of its lowest rated component. For cryogenic service, the lowest recommended temperature is -80°C
- Bare fiber has a pure fused-silica core, fluorine-doped silica cladding, and Polyimide buffer.
- Where core diameter is ≥ 200 µm
- Bend radius is expressed as this factor x the core diameter
- Dependent on wavelength and fiber size.
- Optimized for these two specific wavelengths
- Vacuum and air side connectors, cables and couplers are not included with feedthrough and must be purchased separately.
