VIS/NIR Bulkhead Feedthroughs

100 Micron VIS/NIR, Bolt - 3/8-24

100 Micron VIS/NIR, Bolt - 3/8-24

Part Number: 112559
Fiber Optic Feedthrough (100 micron VIS/NIR), mounted on a Standard Bolt (3/8-24).
Male SMA 905 connectors on each end.
$535.00
BOLT-2IR-3/8, Bulkhead Feedthrough

BOLT-2IR-3/8, Bulkhead Feedthrough

Part Number: 105401

Fiber Optic Feedthrough (200 micron VIS/NIR), mounted on a Standard Bolt.Male SMA 905 connectors on each end.

$435.00
BOLT-4IR-3/8, Bulkhead Feedthrough

BOLT-4IR-3/8, Bulkhead Feedthrough

Part Number: 105411

Fiber Optic Feedthrough (400 micron VIS/NIR), mounted on a Standard Bolt.Male SMA 905 connectors on each end.

$435.00
BOLT-6IR-3/8, Bulkhead Feedthrough

BOLT-6IR-3/8, Bulkhead Feedthrough

Part Number: 105421

Fiber Optic Feedthrough (600 micron VIS/NIR), mounted on a Standard Bolt.Male SMA 905 connectors on each end.

$435.00
BOLT-10IR-3/8, Bulkhead Feedthrough

BOLT-10IR-3/8, Bulkhead Feedthrough

Part Number: 105431

Fiber Optic Feedthrough (1000 micron VIS/NIR), mounted on a Standard Bolt.Male SMA 905 connectors on each end.

$435.00
placeholder image

Bolt / Bulkhead Feedthroughs - Step-Index VIS/NIR

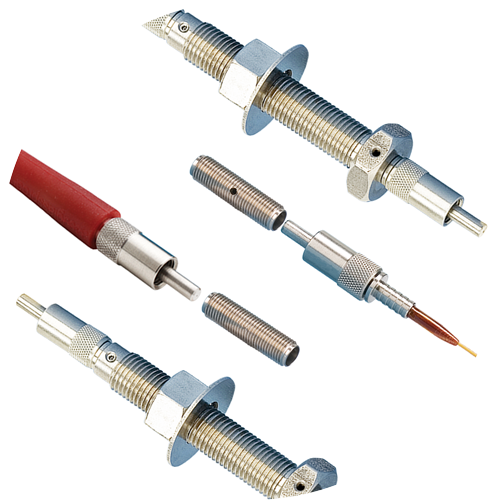

VIS/NIR Fiber Optic Bulkhead Feedthroughs

Fiber Optic Feedthroughs

Accu-Glass offers fiber optic feedthroughs with 62.5, 100, 200, 400, 600, and 1000 micron core diameters. These feedthroughs are ideally suited for industrial and/or scientific research applications requiring air-to-vacuum fiber optic transitions/connections. Multimode fibers (both Step and Graded Index types) are hermetically sealed into a stainless steel shell, using the latest in glass-ceramic-metal bonding technology. Standard fiber optic feedthroughs are terminated with premium SMA 905 connectors on both the vacuum and air sides. FC and ST connections are also available.

Polyimide buffered optical fiber cable assemblies are offered to meet the rigorous demands of ultrahigh vacuum environments. These optical fibers are of a core-and-cladding composite construction. The core, or the filament that guides the light, consists of a thin strand of high-transmission fused silica. The cladding is an outer layer of doped, lower refractive-index fused silica. This dual-layer design tightly confines light to the fiber's central core, thus delivering the maximum amount of light possible at the fiber's destination. Fiber diameters are closely controlled during the drawing process, allowing fibers to center well in connectors and boast low loss rates.

Graded-index multimode fiber bridges the gap between single mode and step-index multimode fibers, giving up some bandwidth for ease of termination and light launch. It's more economical than single mode fiber and primarily used for data communication (not as useful for power transmission) applications requiring medium run distances (2 to 15 km lengths).

Features

  • UHV compatible construction
  • 100, 200, 400, 600, and 1000μm UV, VIS and NIR Step Index fibers
  • 62.5μm Graded Index fiber
  • SMA 905 premium connector interface
  • High temperature rated to 250°C
  • Conflat® and ISO KF compatible mounts
  • Polyimide buffered vacuum rated optical cables
