100 Single Fiber, ISO NW16 KF, VIS/NIR
Part Number: 112556
Fiber Optic Feedthrough (100 micron VIS/NIR), mounted on a NW16KF Flange.Male SMA 905 connectors on each end.
$845.00
Step-Index VIS/NIR ISO Feedthroughs
100 Single Fiber, ISO NW40 KF, VIS/NIR
Part Number: 112557
Fiber Optic Feedthrough (100 micron VIS/NIR), mounted on a NW40KF Flange.Male SMA 905 connectors on each end.
$857.00
100 Dual Fiber, ISO NW40 KF, VIS/NIR
Part Number: 112558
2ea. Fiber Optic Feedthrough (100 micron VIS/NIR), mounted on a NW40KF Flange.Male SMA 905 connectors on each end.
$1,532.00
200 Single Fiber, ISO NW16 KF, VIS/NIR
Part Number: 105030
Fiber Optic Feedthrough (200 micron VIS/NIR), mounted on a NW16KF Flange.Male SMA 905 connectors on each end.
$569.00
200 Single Fiber, ISO NW40 KF, VIS/NIR
Part Number: 105031
Fiber Optic Feedthrough (200 micron VIS/NIR), mounted on a NW40KF Flange.Male SMA 905 connectors on each end.
$592.00
200 Dual Fiber, ISO NW40 KF, VIS/NIR
Part Number: 112312
2ea. Fibre Optic Feedthrough (200 micron VIS/NIR), mounted on a NW40KF Flange.Male SMA 905 connectors on each end.
$1,041.00
200 Seven Fiber, ISO NW40 KF, VIS/NIR
Part Number: 112809
7ea. Fiber Optic feedthroughs sealed in a single body (200 micron VIS/NIR), mounted on a NW40 KF Flange.
$3,393.00
400 Single Fiber, ISO NW16 KF, VIS/NIR
Part Number: 105130
Fiber Optic Feedthrough (400 micron VIS/NIR), mounted on a NW16KF Flange.Male SMA 905 connectors on each end.
$575.00
400 Single Fiber, ISO NW40 KF, VIS/NIR
Part Number: 105131
Fiber Optic Feedthrough (400 micron VIS/NIR), mounted on a NW40KF Flange.Male SMA 905 connectors on each end.
$598.00
400 Dual Fiber, ISO NW40 KF, VIS/NIR
Part Number: 112313
2ea. Fibre Optic Feedthrough (400 micron VIS/NIR), mounted on a NW40KF Flange.Male SMA 905 connectors on each end.
$1,047.00
400 Seven Fiber, ISO NW40 KF, VIS/NIR
Part Number: 112810
7ea. Fiber Optic feedthroughs sealed in a single body (400 micron VIS/NIR), mounted on a NW40 KF Flange.
$3,278.00
600 Single Fiber, ISO NW16 KF, VIS/NIR
Part Number: 105230
Fiber Optic Feedthrough (600 micron VIS/NIR), mounted on a NW16KF Flange.Male SMA 905 connectors on each end.
$587.00
600 Single Fiber, ISO NW40 KF, VIS/NIR
Part Number: 105231
Fiber Optic Feedthrough (600 micron VIS/NIR), mounted on a NW40KF Flange.Male SMA 905 connectors on each end.
$611.00
600 Dual Fiber, ISO NW40 KF, VIS/NIR
Part Number: 112314
2ea. Fibre Optic Feedthrough (600 micron VIS/NIR), mounted on a NW40KF Flange.Male SMA 905 connectors on each end.
$1,058.00
600 Seven Fiber, ISO NW40 KF, VIS/NIR
Part Number: 112811
7ea. Fiber Optic feedthroughs sealed in a single body (600 micron VIS/NIR), mounted on a NW40 KF Flange.
$3,163.00
1000 Single Fiber, ISO NW16 KF, VIS/NIR
Part Number: 105330
Fiber Optic Feedthrough (1000 micron VIS/NIR), mounted on a NW16KF Flange.Male SMA 905 connectors on each end.
$661.00
1000 Single Fiber, ISO NW40 KF, VIS/NIR
Part Number: 105331
Fiber Optic Feedthrough (1000 micron VIS/NIR), mounted on a NW40KF Flange.Male SMA 905 connectors on each end.
$669.00
1000 Dual Fiber, ISO NW40 KF, VIS/NIR
Part Number: 112315
2ea. Fibre Optic Feedthrough (1000 micron VIS/NIR), mounted on a NW40KF Flange.Male SMA 905 connectors on each end.
$1,153.00
1000 Seven Fiber, ISO NW40 KF, VIS/NIR
Part Number: 112812
7ea. Fiber Optic feedthroughs sealed in a single body (1000 micron VIS/NIR), mounted on a NW40 KF Flange.
$3,048.00
SMA to SMA 905 Vacuum Service Fiber Optic Coupler
Part Number: 105450
Vented Fiber Optic Cable coupler used to mate two SMA 905 Fiber Optic cables. Vacuum Service, with vent hole.
$38.00

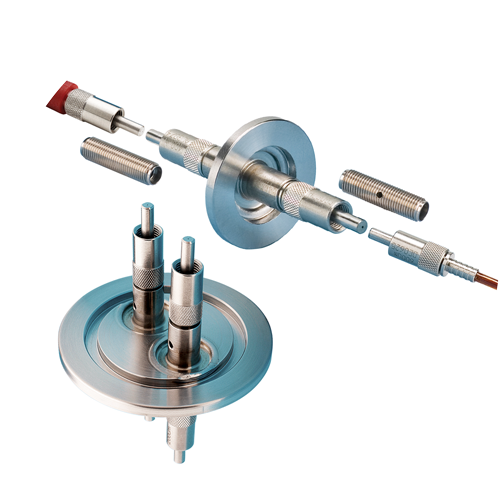

█ VIS/NIR Fiber Optic Feedthroughs on ISO-NW
Accu-Glass offers fiber optic feedthroughs with 62.5, 100, 200, 400, 600, and 1000 micron core diameters. These feedthroughs are ideally suited for industrial and/or scientific research applications requiring air-to-vacuum fiber optic transitions/connections. Multimode fibers (both Step and Graded Index types) are hermetically sealed into a stainless steel shell, using the latest in glass-ceramic-metal bonding technology. Standard fiber optic feedthroughs are terminated with premium SMA 905 connectors on both vacuum and air sides. FC and ST connections are also available.
Polyimide buffered optical fiber cable assemblies are offered to meet the rigorous demands of ultrahigh vacuum environments. These optical fibers are of a core-and-cladding composite construction. The core, or the filament that guides the light, consists of a thin strand of high-transmission fused silica. The cladding is an outer layer of doped, lower refractive-index fused silica. This dual-layer design tightly confines light to the fiber's central core, thus delivering the maximum amount of light possible at the fiber's destination. Fiber diameters are closely controlled during the drawing process, allowing fibers to center well in connectors and boast low loss rates.
Graded-index multimode fiber bridges the gap between single-mode and step-index multimode fibers, giving up some bandwidth for ease of termination and light launch. It's more economical than single-mode fiber, and primarily used for data communication (not as useful for power transmission) applications requiring medium run distances of 2 to 15 km lengths.
- █ High-OH, 200-800nm UV/VIS
For UV/VIS applications only. Use ≤ 15 meter lengths to avoid high attenuation.
- █ Ultra Low-OH, 400–2200nm VIS/NIR
For extremely long length VIS/NIR applications. Lowest possible light attenuation.
Features
- UHV compatible construction
- 100, 200, 400, 600, and 1000μm
UV, VIS and NIR Step Index fibers - 62.5μm NIR Graded Index fiber
- SMA 905 premium connector interface
- High temperature rated to 250°C
- Conflat® and ISO KF compatible mounts
- Polyimide buffered vacuum rated optical cables
Specifications
| Material | |
| Hardware, Stainless Steel | 304 |
| Fiber Construction | |
| Core, Silica | SiO2 |
| Cladding, Fluorine-Doped Silica | F-SiO2 |
| Buffer, Aluminum (Feedthrough) | Al |
| Buffer, Polyimide (Cable) | PI |
| Vacuum Range | |
| UHV, Ultrahigh vacuum | 1x10E-10 Torr |
| HV, High vacuum | 1x10E-8 Torr |
| Temperature Range 1 | |
| Feedthrough | -200 to 250°C |
| Flange, Conflat® | -200 to 450°C |
| Flange, ISO | 150°C |
| Connector / Cable, Air | 80°C |
| Connector / Cable, UHV | -65 to 200°C |
| Thermal Gradient, Maximum | 25°C/minute |
| Step Index Fiber 2 | |
| Operational Wavelengths | |
| █ UV / VIS, High-OH | 200-800 nm |
| █ VIS / IR, Ultra Low-OH | 400-2200 nm |
| Diameters, Five (5) Core | 100 to 1000 µm |
| Aperture, 24.8° Numerical | 0.22 ± 0.02 |
| Core / Cladding Ratio 3 | 1 : 1.1 |
| Power | < 1W |
| Bend Radius 4 | 200x |
| Momentary | 200x |
| Long Term | 400x |
| Insertion Loss 5, Interconnect | -0.8 to -2.0 dB |
| Graded Index Fiber | |
| Core Diameter | 62.5 µm |
| Clad Diameter | 125 µm |
| Operational Wavelengths 6, Two | |
| Optimized for use @ | 850 nm |
| Optimized for use @ | 1300 nm |
| Aperture, Numerical | 0.27 ± 0.02 |
| Bend Radius 4 | |
| Momentary | 400x |
| Long Term | 800x |
| Attenuation @ 850, and 1300 nm | |
| @ 850 nm | ≤ 3.0 dB |
| @ 1,300 nm | ≤ 0.8 dB |
| Notes |
- Overall assembly ratings must be adjusted to that of its lowest rated component. For cryogenic service, the lowest recommended temperature is -80°C
- Bare fiber has a pure fused-silica core, fluorine-doped silica cladding, and Polyimide buffer.
- Where core diameter is ≥ 200 µm
- Bend radius is expressed as this factor x the core diameter
- Dependent on wavelength and fiber size.
- Optimized for these two specific wavelengths
- Vacuum and air side connectors, cables and couplers are not included with feedthrough and must be purchased separately.
